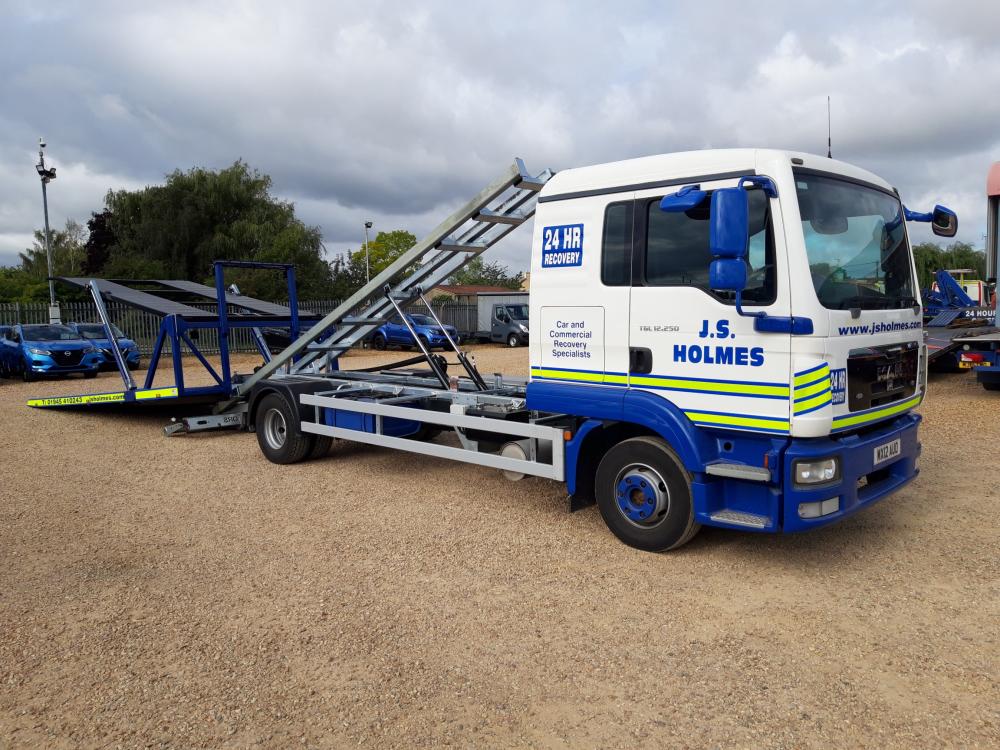

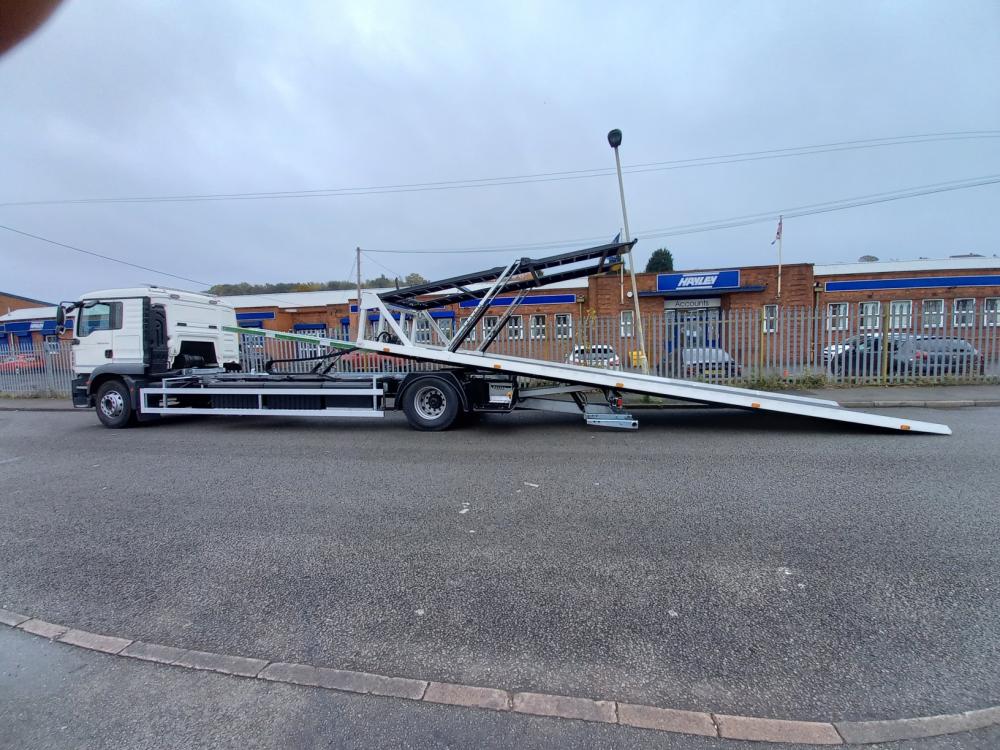

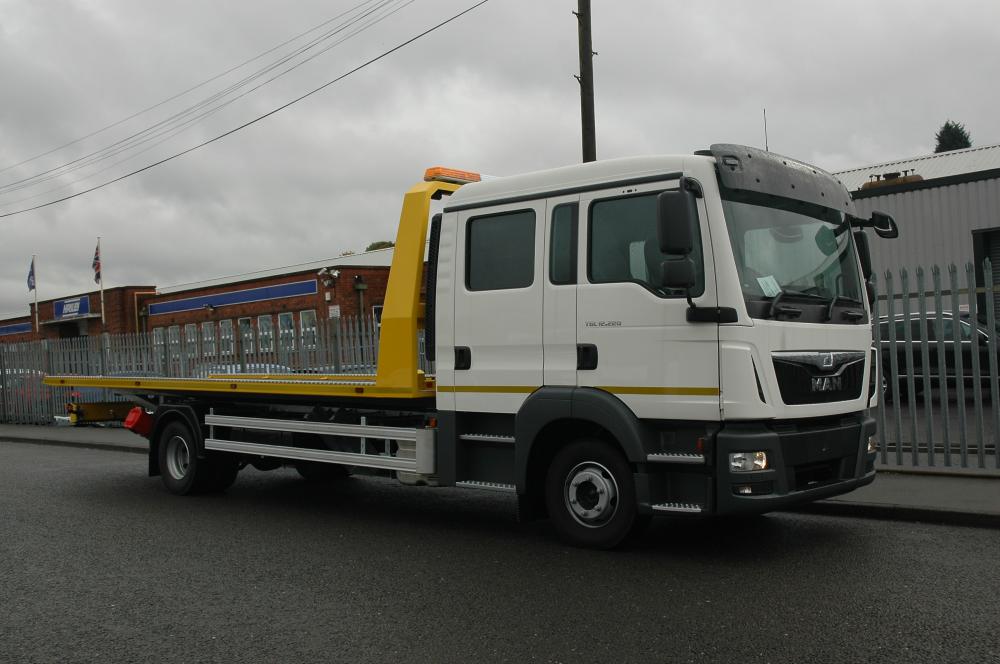

SO-LO SEMI DEMOUNT SYSTEM
So-Lo Semi-Demount System range can cover a wide choice of Vehicles from 7.5ton to 26ton chassis with a large number of options
Most popular version in the range is So-Lo 5 ton (5ton design load)
STANDARD BUILD
Chassis sub frame & sub frame with tilt cylinders
Tilt frame wrap carriage with hydraulic track motor , high tensile gear tracking & hard plastic ware pads

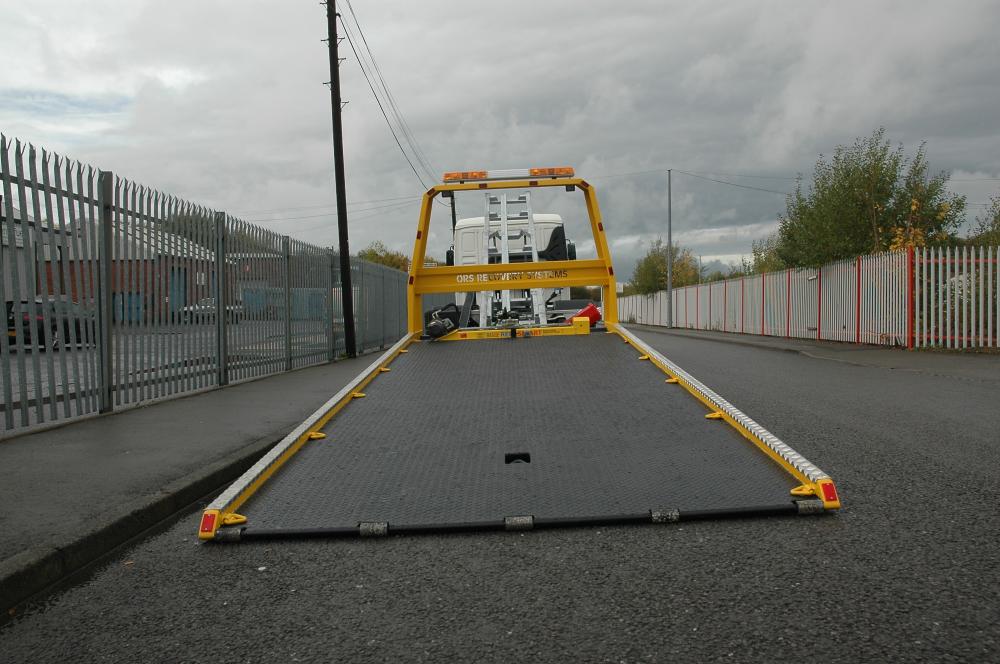

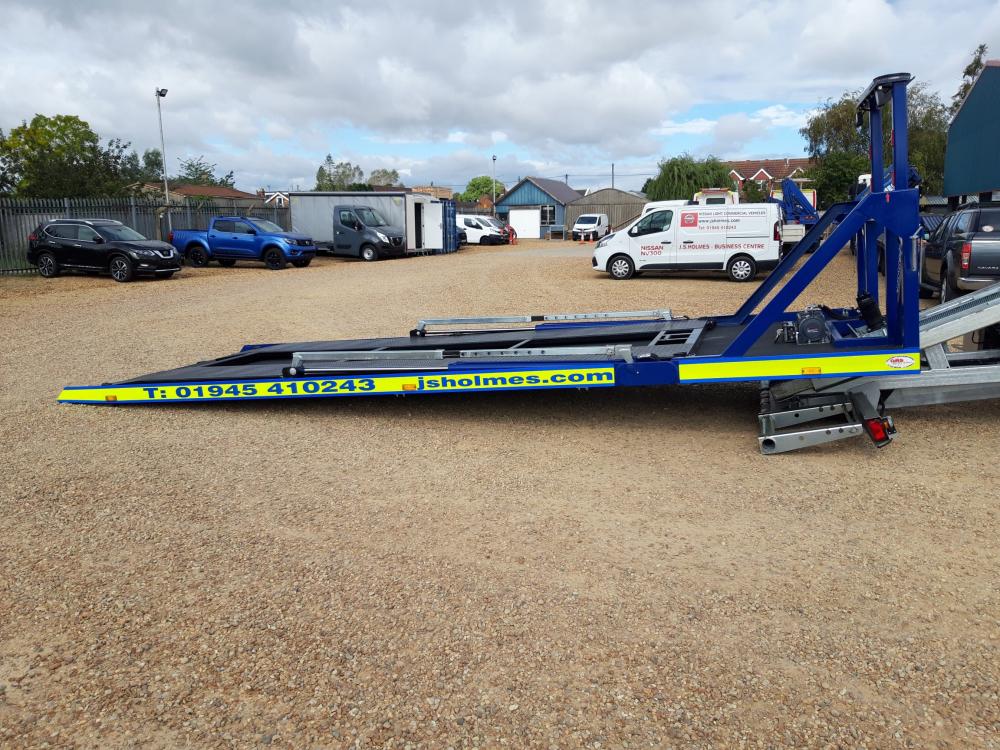

Steel 5ton (design) platform to suit chassis, bed front pivot pins, full bed end rollers & low down winch mount channel
8x tie-down lashing rings to suit bed

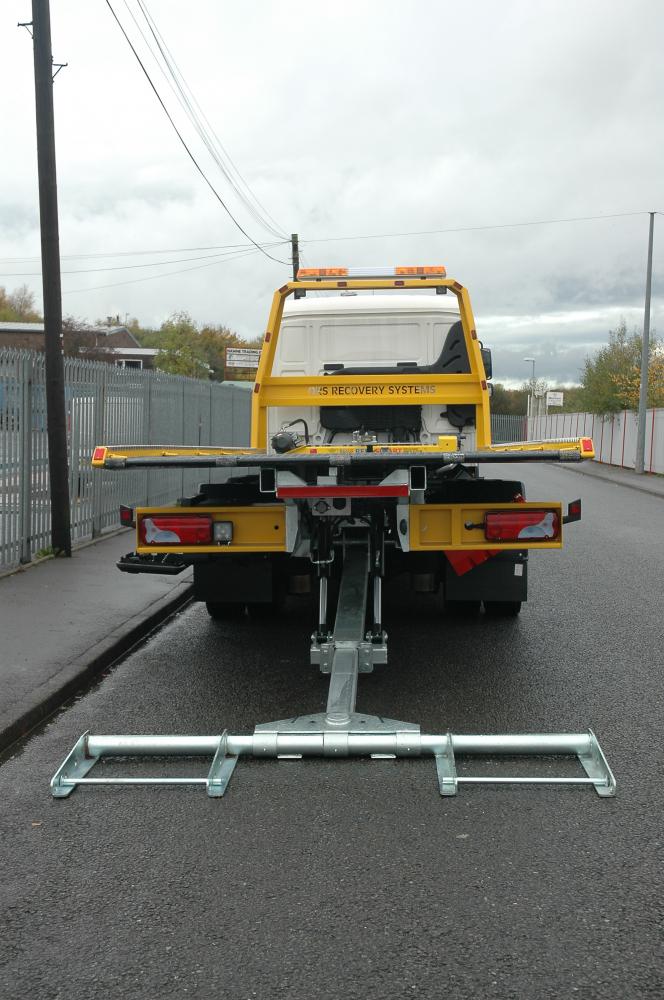

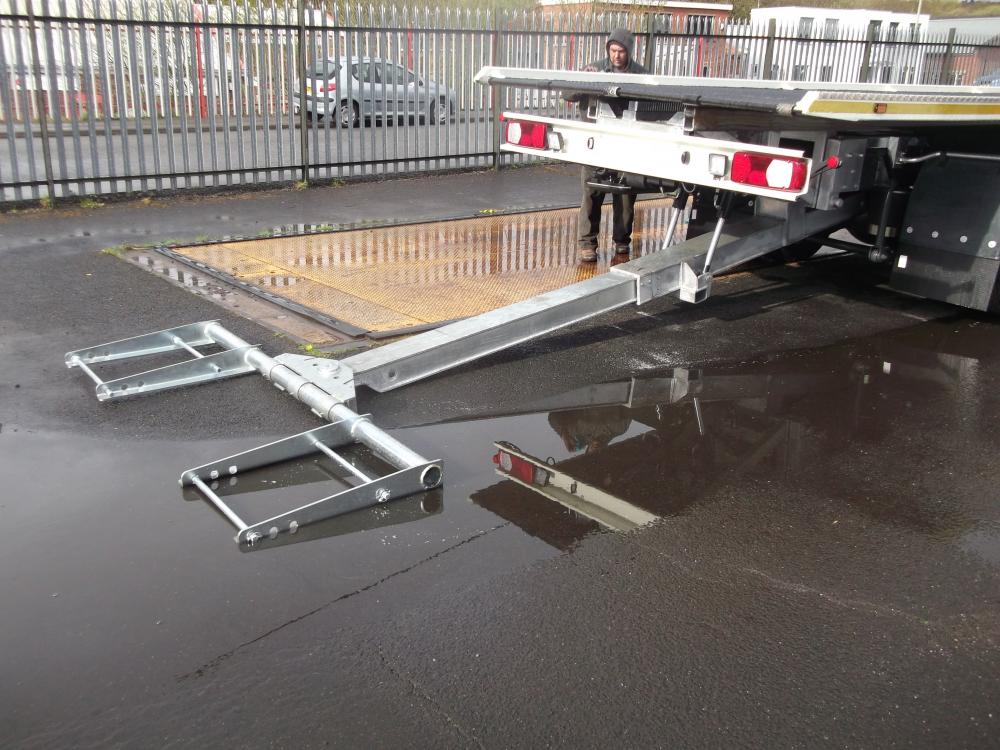

ORS 2ton rear vehicle lift with open end wheel grids on manual controls
12,000lb hydraulic winch on radio remote
Radio remote to plaform with auto tilt
Platform flyer with LED Beacon & 6x Red LED outline marker lights
3x LED work lights , 6x LED side marker lights
1x plastic side locker
1x smell plastic control station locker
PTO & Pump to suit manual box (note auto box extra charge)
FINISH
All under carriage system are galvanised
Platform to be shot blasted, hard coat primer, floor & underside in Black Mio-guard
Side rails & flyer in solid colour to match cab
2x plastic mud wings
OPTIONAL EXTRAS
Rear tow bracket
Cone carrier
Reversible caravan & motorcycle stand
Winch back box to rear of bed
Double up winching ring
Aluminium Platform ( note 7,5 ton chassis only)
Top deck front pivot type

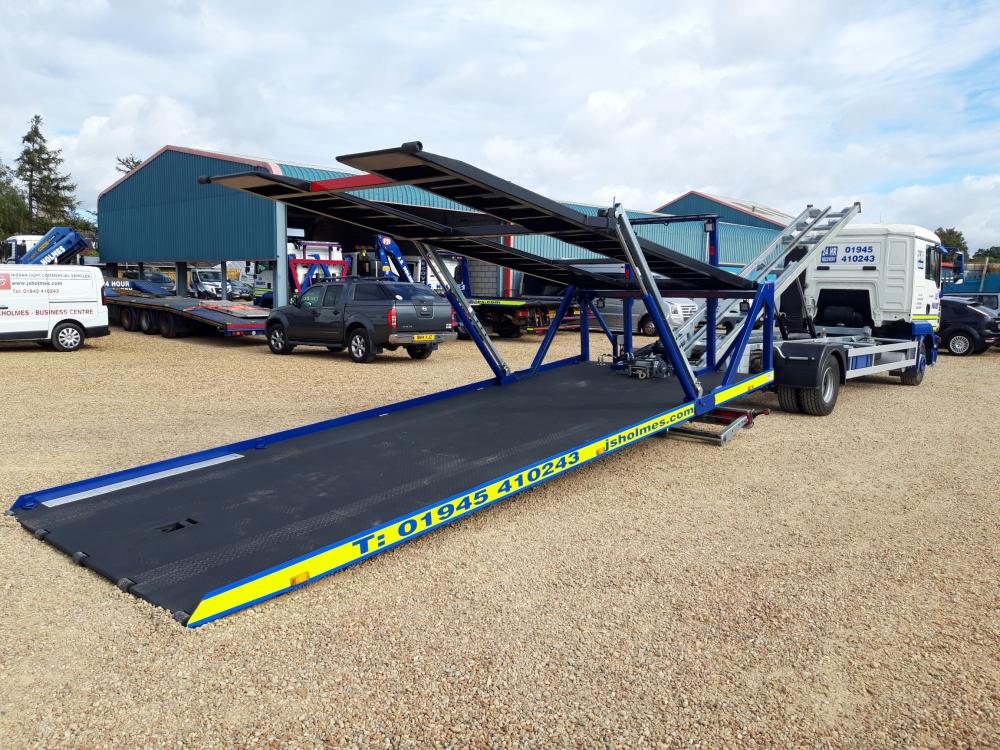

Lie-flat top deck
ORS 3.5 ton (design) rear vehicle lift with extra wide wheel grids
Stainless steel lockers
Flat steel side rail for extra width
Sliding winch mount manual type

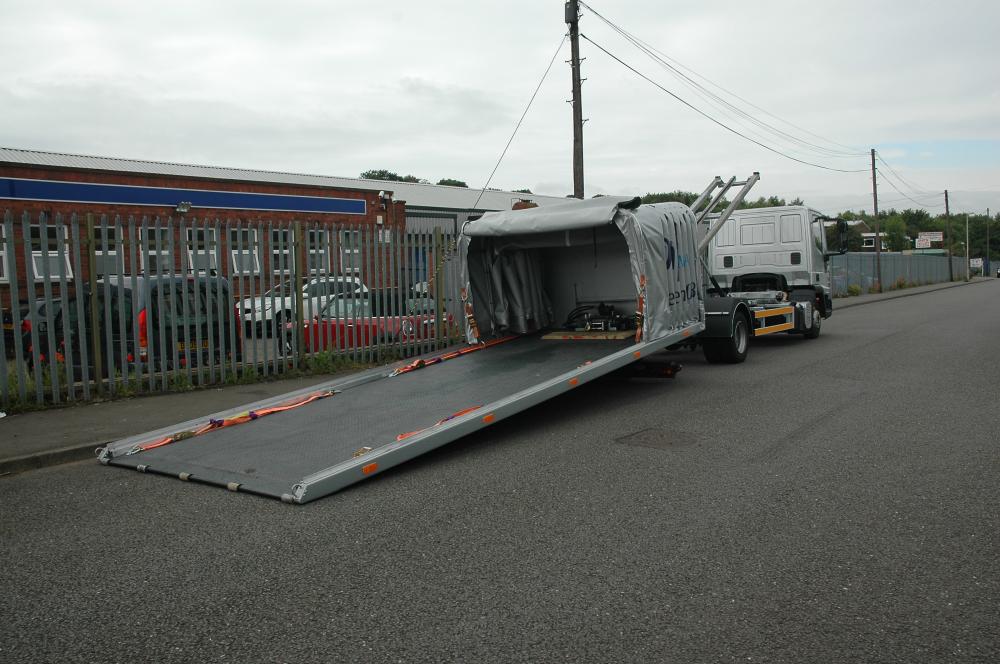

Sliding & cover bodies
IVA paper work for new vehicles
