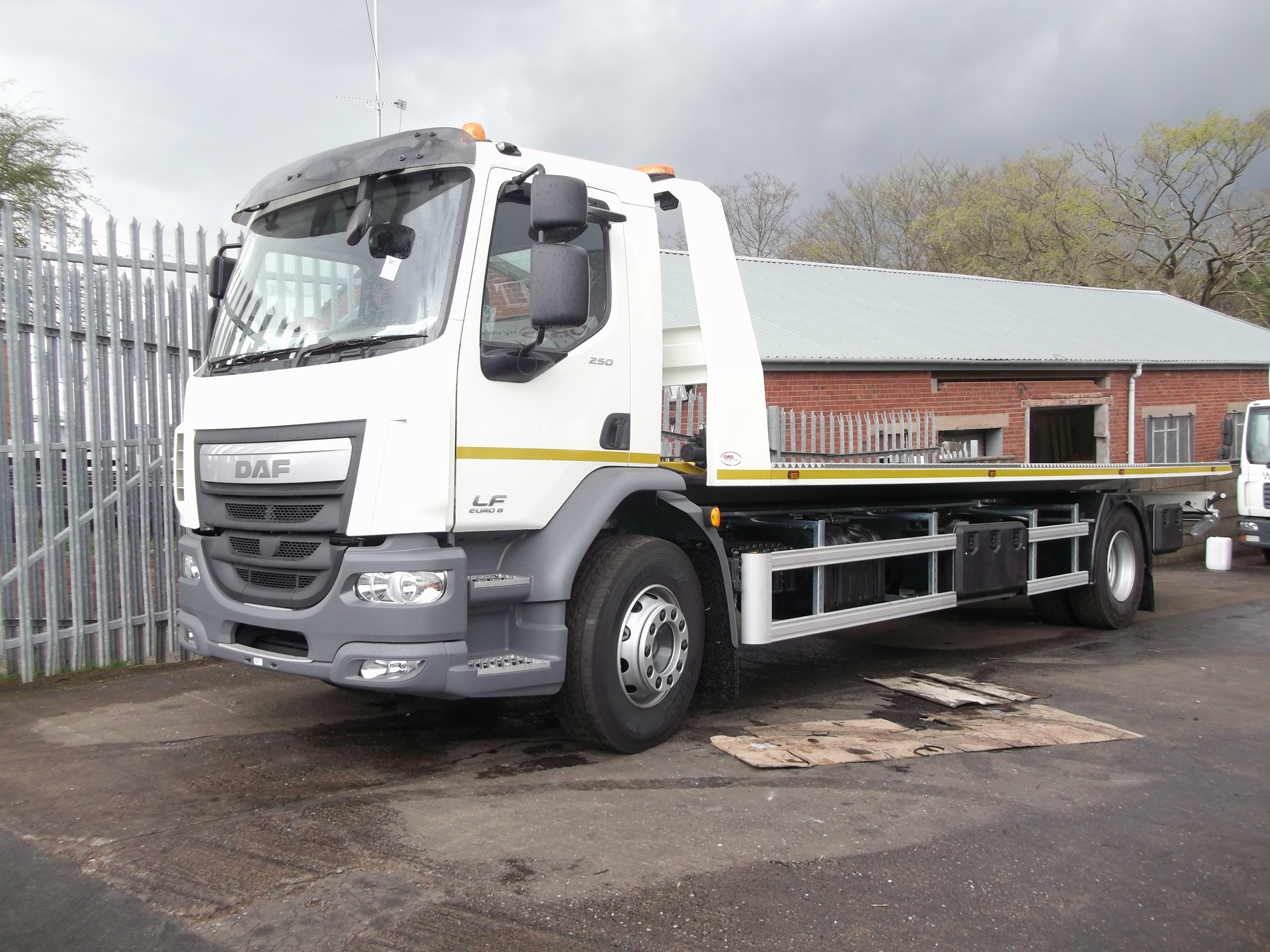

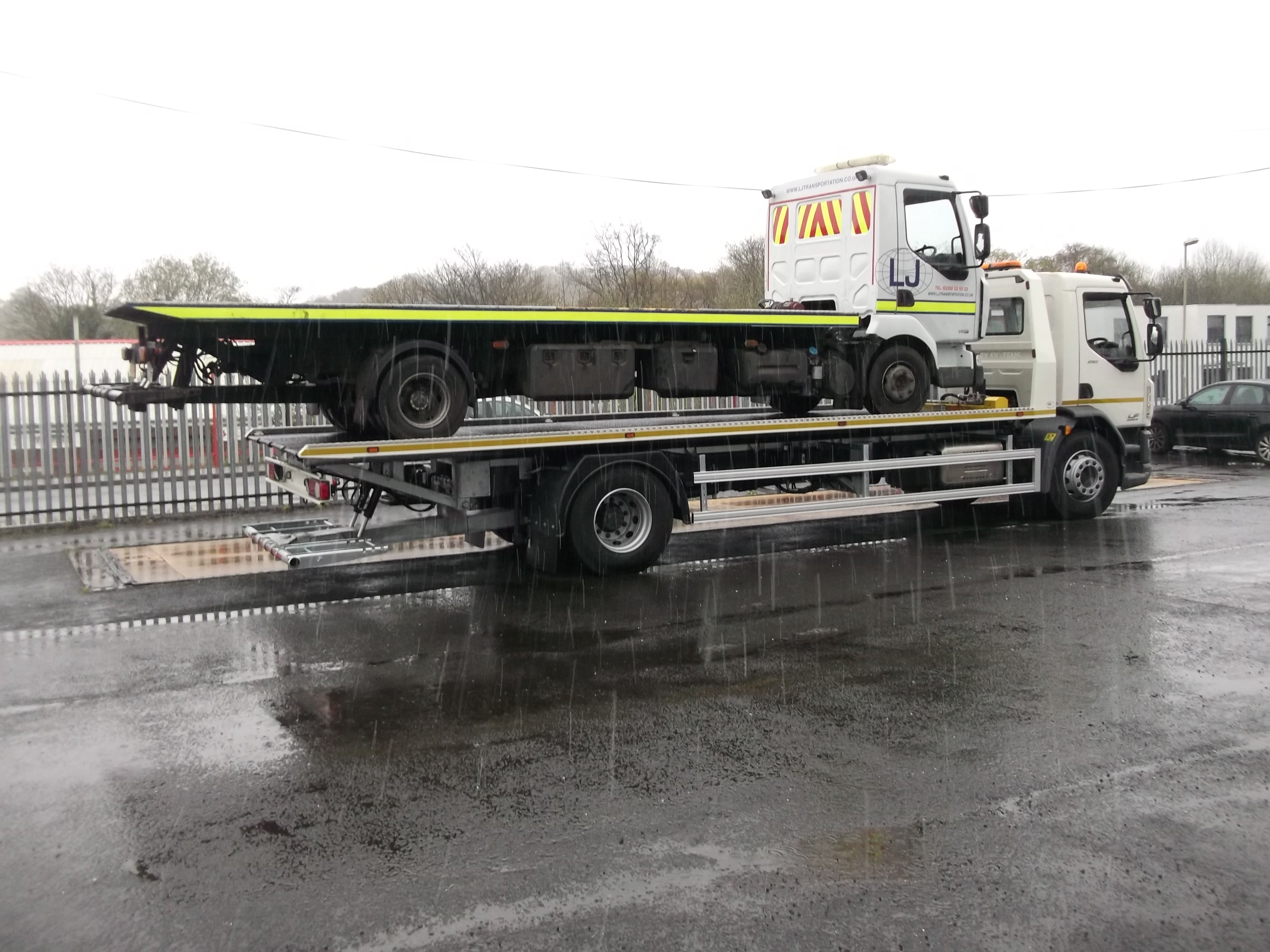

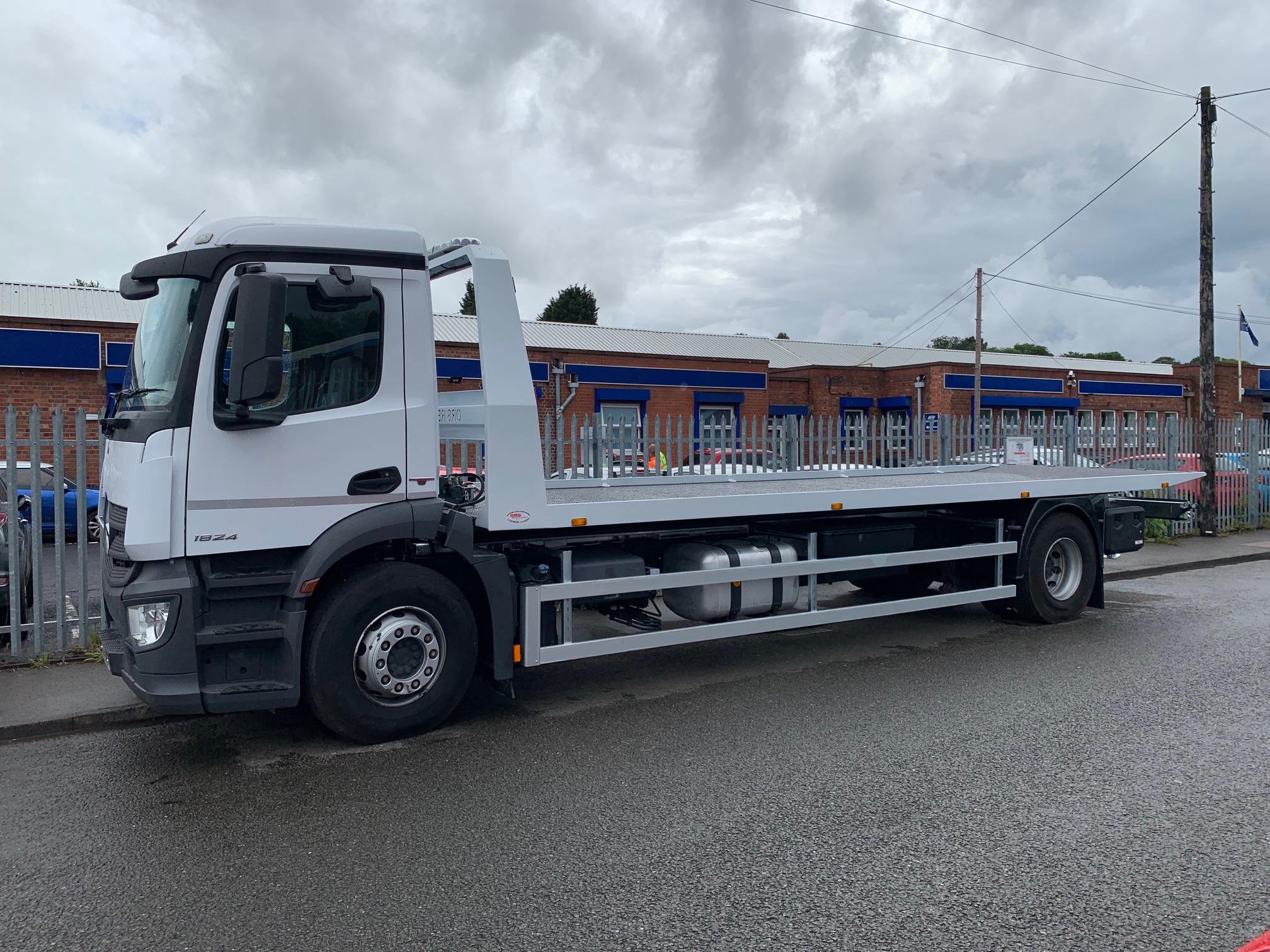

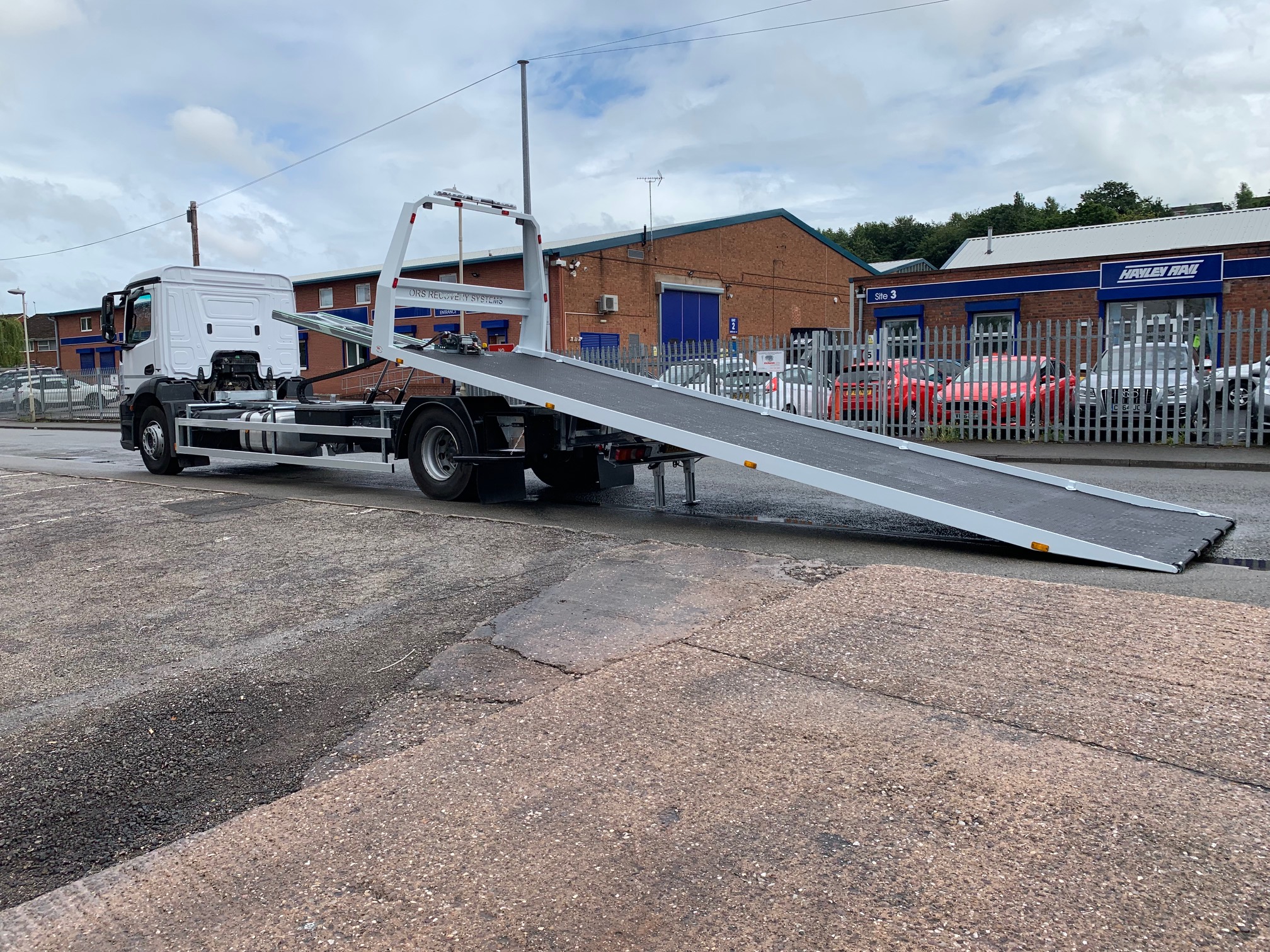

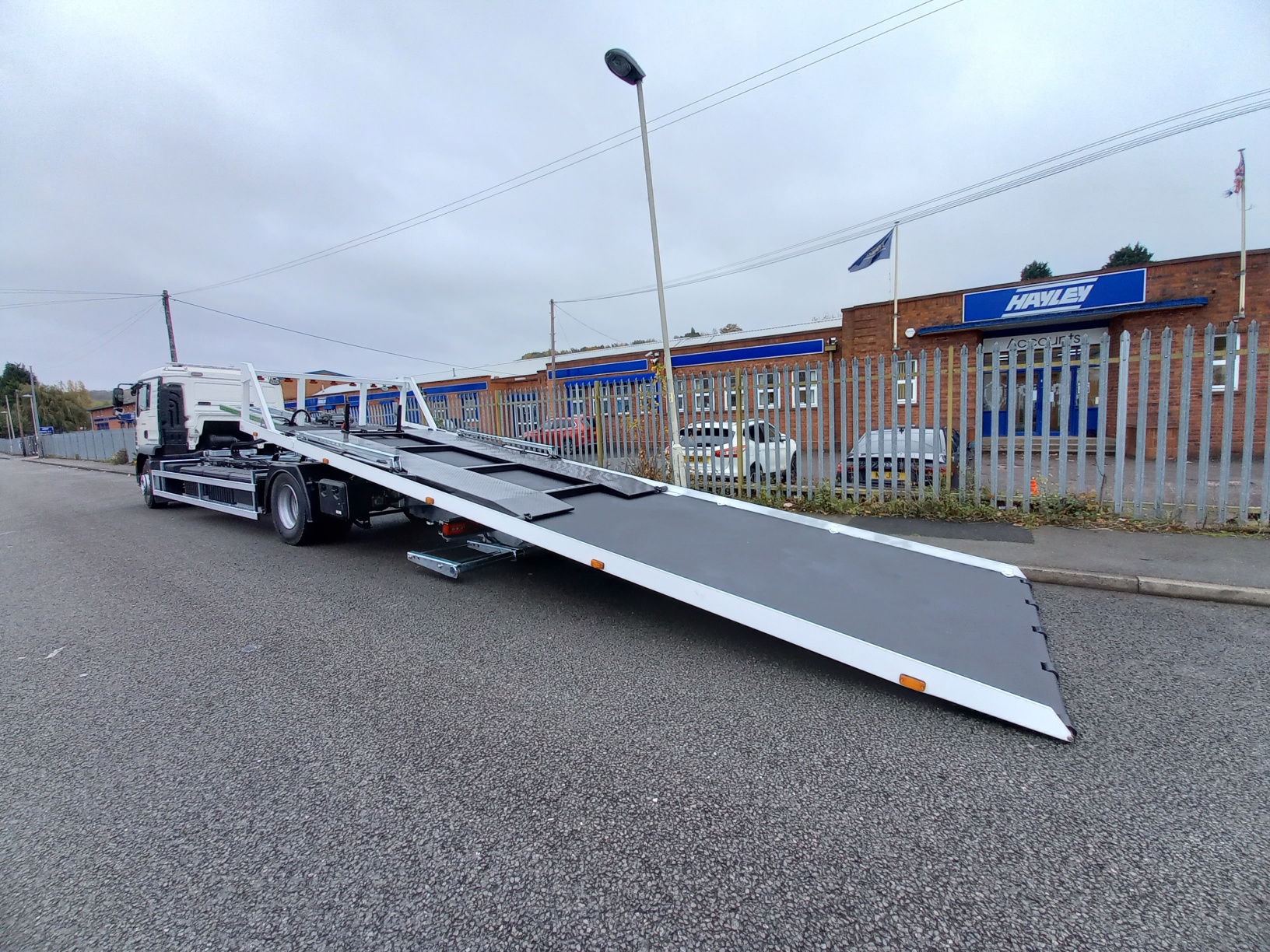

ORS 8/10 Slidebed

The ORS 8/10 slidebed an ideal choice for 18ton to 26ton Accident units, smell plant & forklifts

Design to cope with the hard work of accident recovery to the smell load displacement of forklifts

STANDARD BUILD

Heavy duty chassis sub frame

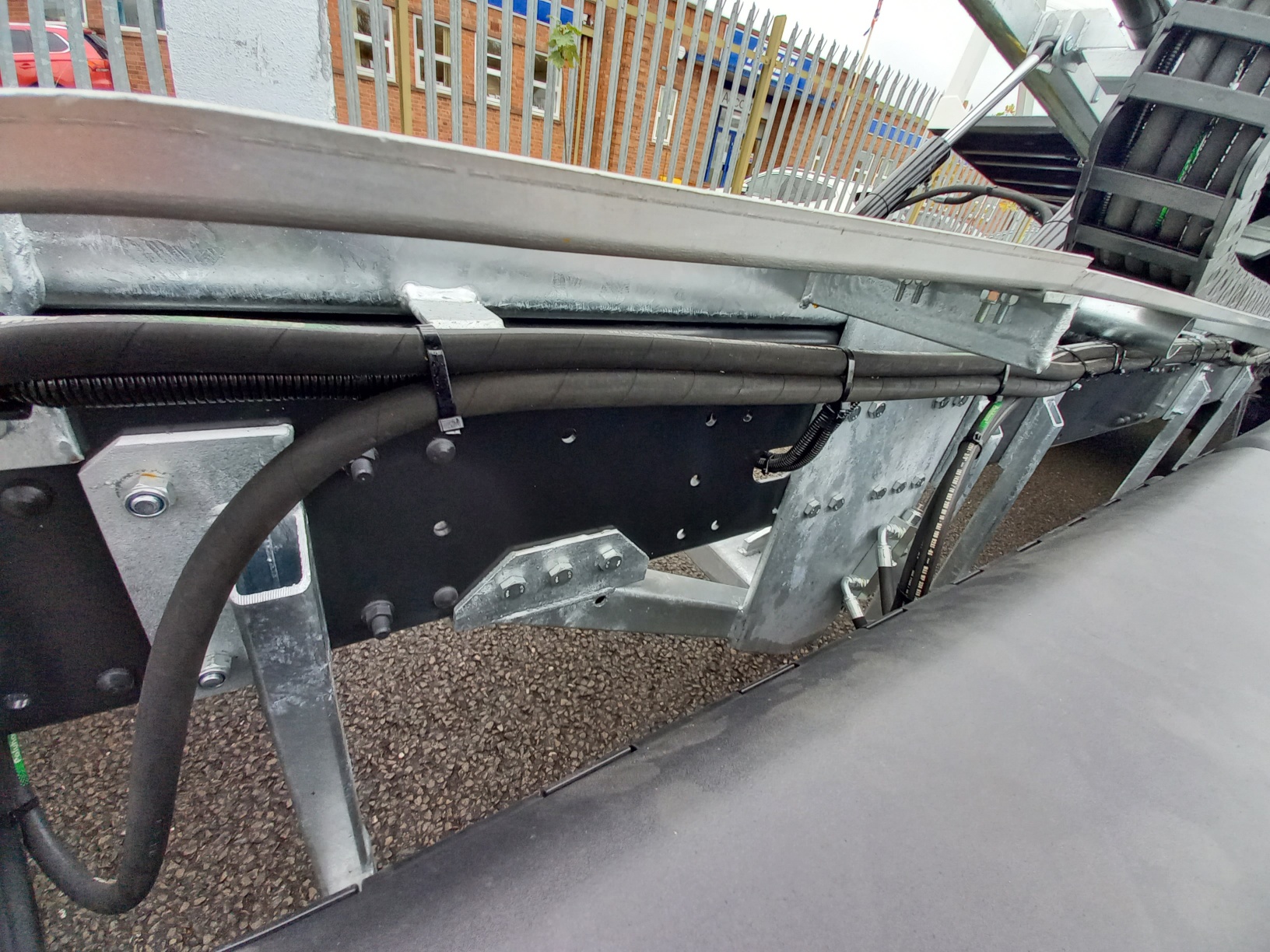

Heavy duty tilt frame & slide cylinder, nylatron ware pads to top & sides

Chassis mounted lift cylinder carrage

Extra strong platform to suit chassis, flat steel side rails for extra width, full bed end rollers & LED side marker lights

Low city mover head broad with red LED outline marker lights , 2x LED worklights

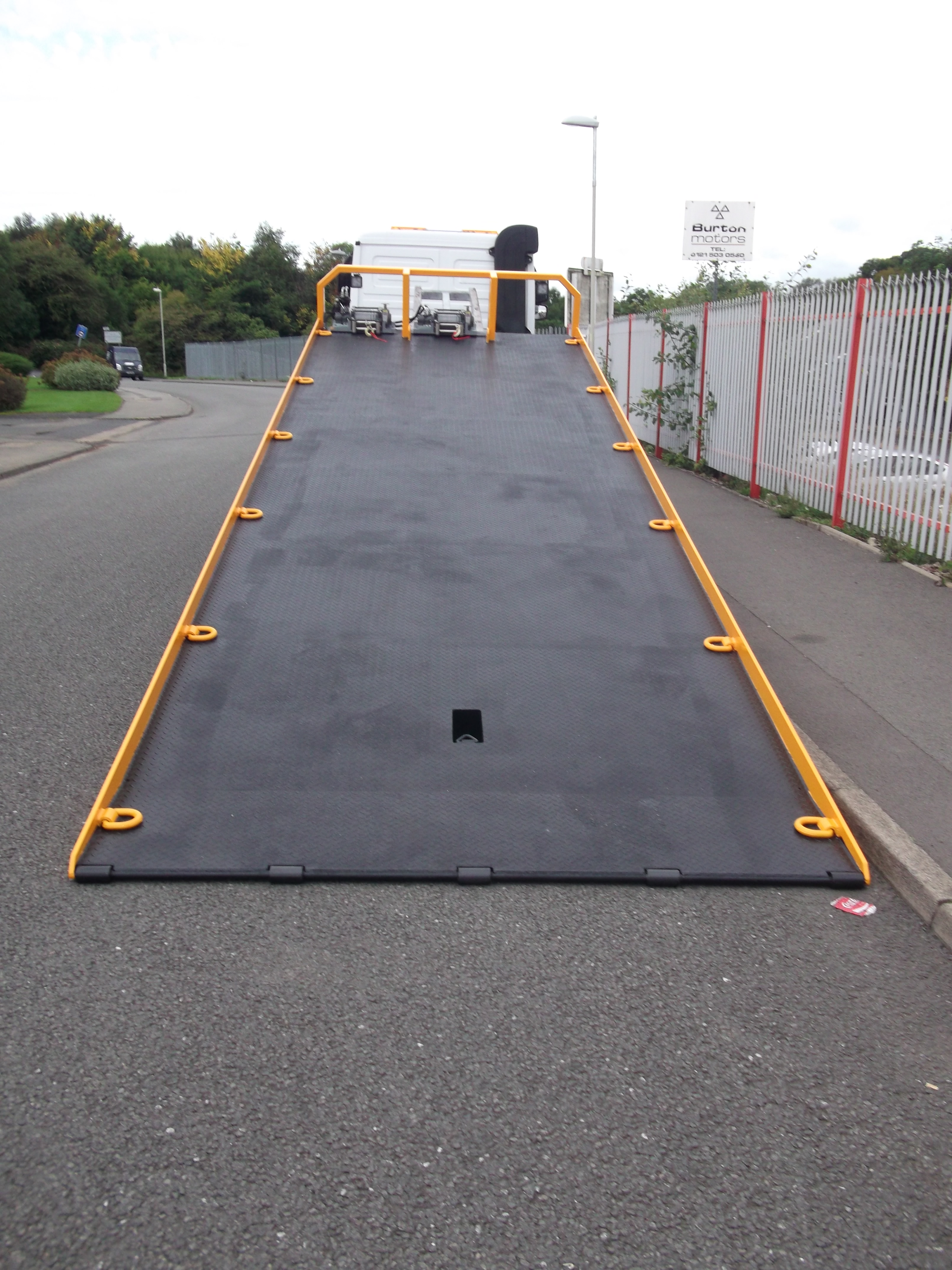

8x heavy duty tie-down lashings rings

ORS 2.5 rear vehicle lift (2.5ton design) with open end wheel grinds , reducer bars & LED loading light to rear light panel

12,000lb hydraulic winch with radio remote

LED Beacon to cab roof

1x Plastic side locker

1x Smell plastic control station locker

2x Plastic mud wings

P.T.O & pump (manual gearbox)

FINISH

Galvanised sub frame, lift cylinder frame , tilt frame & rear vehicle lift

Platform is Shot blasted, hard coat primer, Black Mio-guard to floor & underside

Side rails & head broad in solid colour to match cab

OPTIONAL EXTRAS

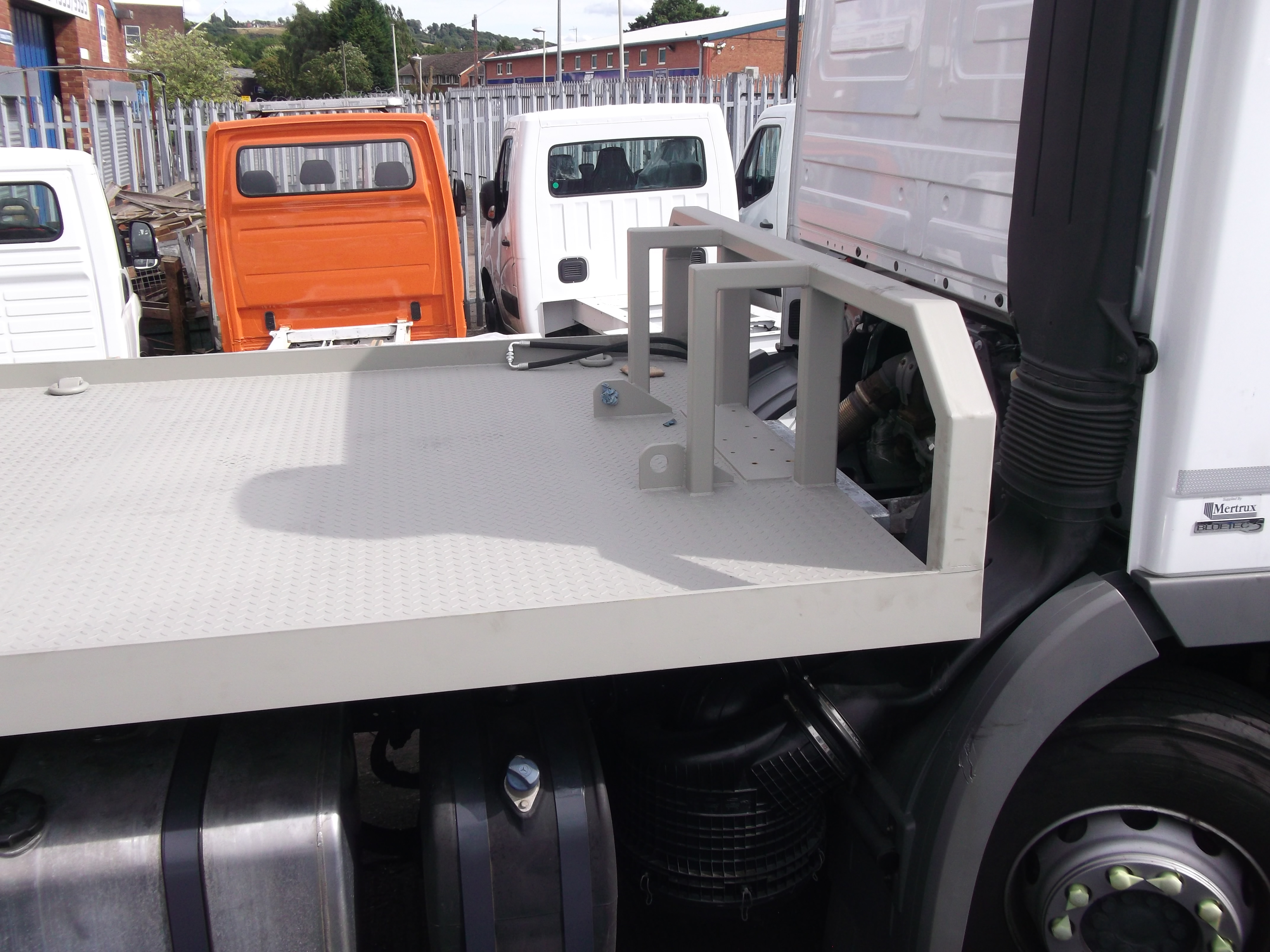

Extended chassis sub frame to accommodate crane mounting

Flyer bridge with LED Beacon, 6x red LED outline marker lights & 2x LED worklights

ORS 3 rear vehicle lift (3ton design) with extra wide wheel grids

Tow bracket with stowage mounting

Cone carrier

Heavy duty winch back box to rear of bed

Heavy duty double up winch point to front of bed

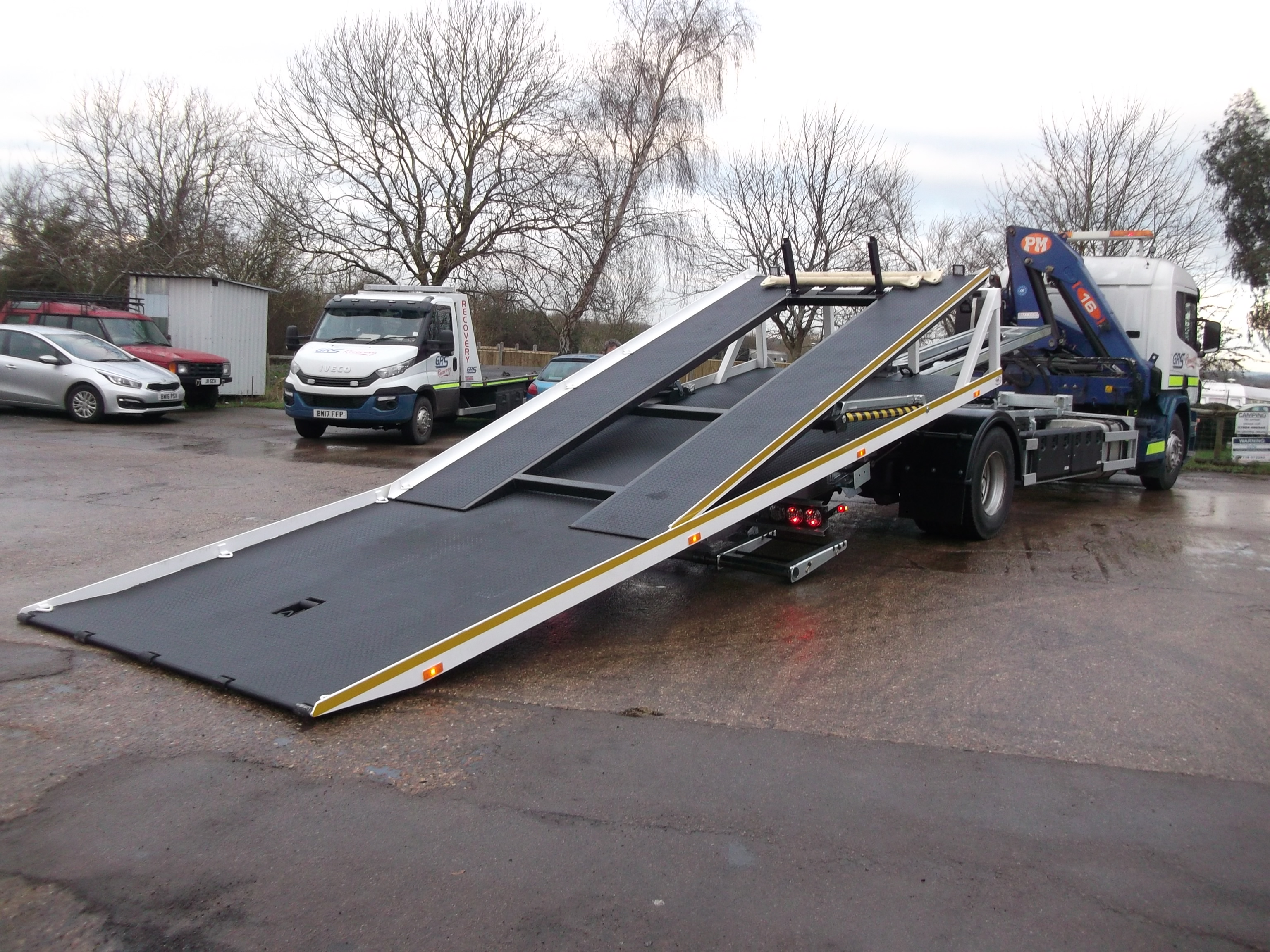

Lie-flat top deck (2.5ton design)

Auto slide & tilt system on radio remote

Stainless steel lockers

Side protection rails

P.T.O Hot clutch system ( automatic gearbox only)

I.V.A paperwork for new vehicle
