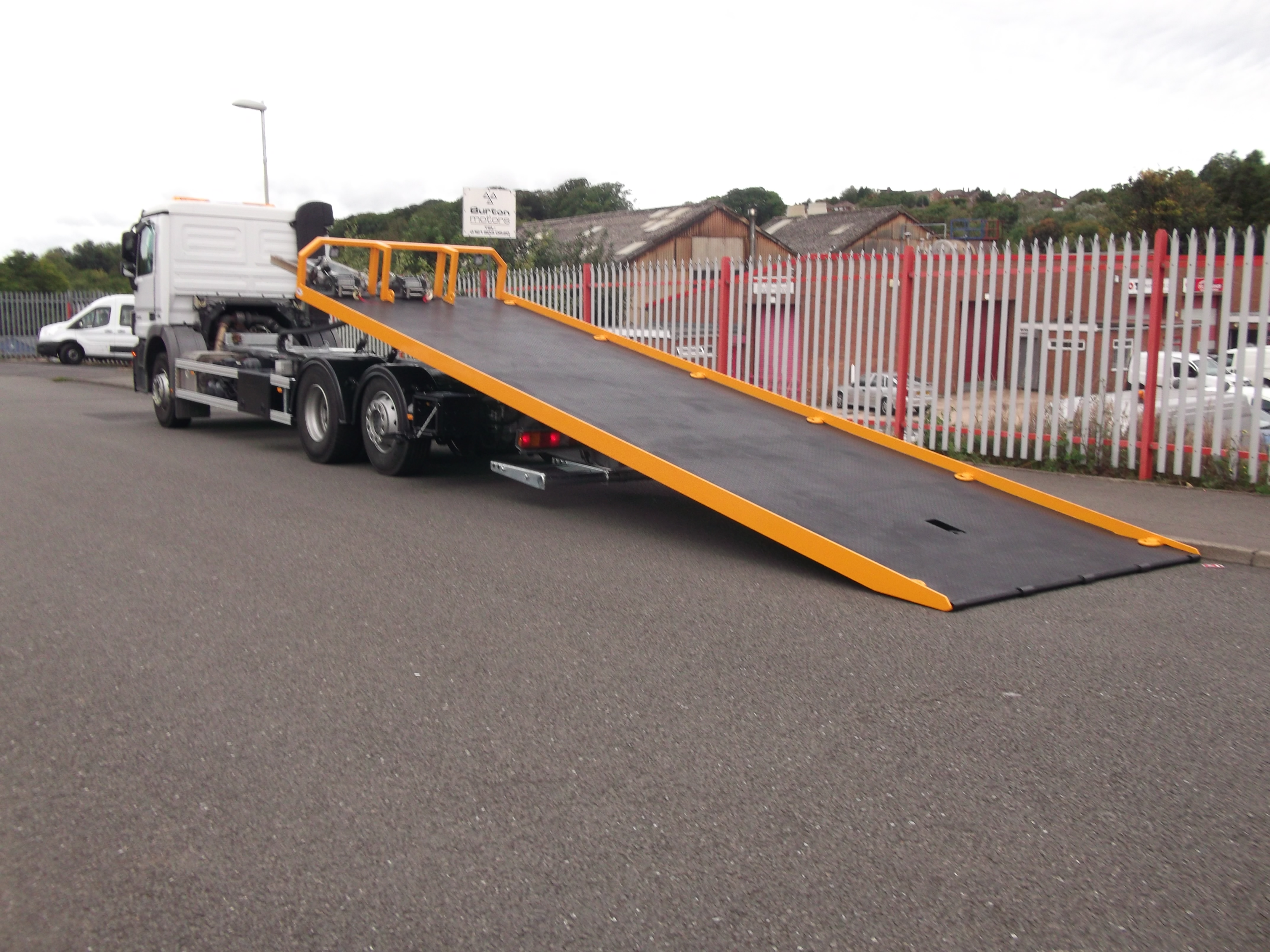

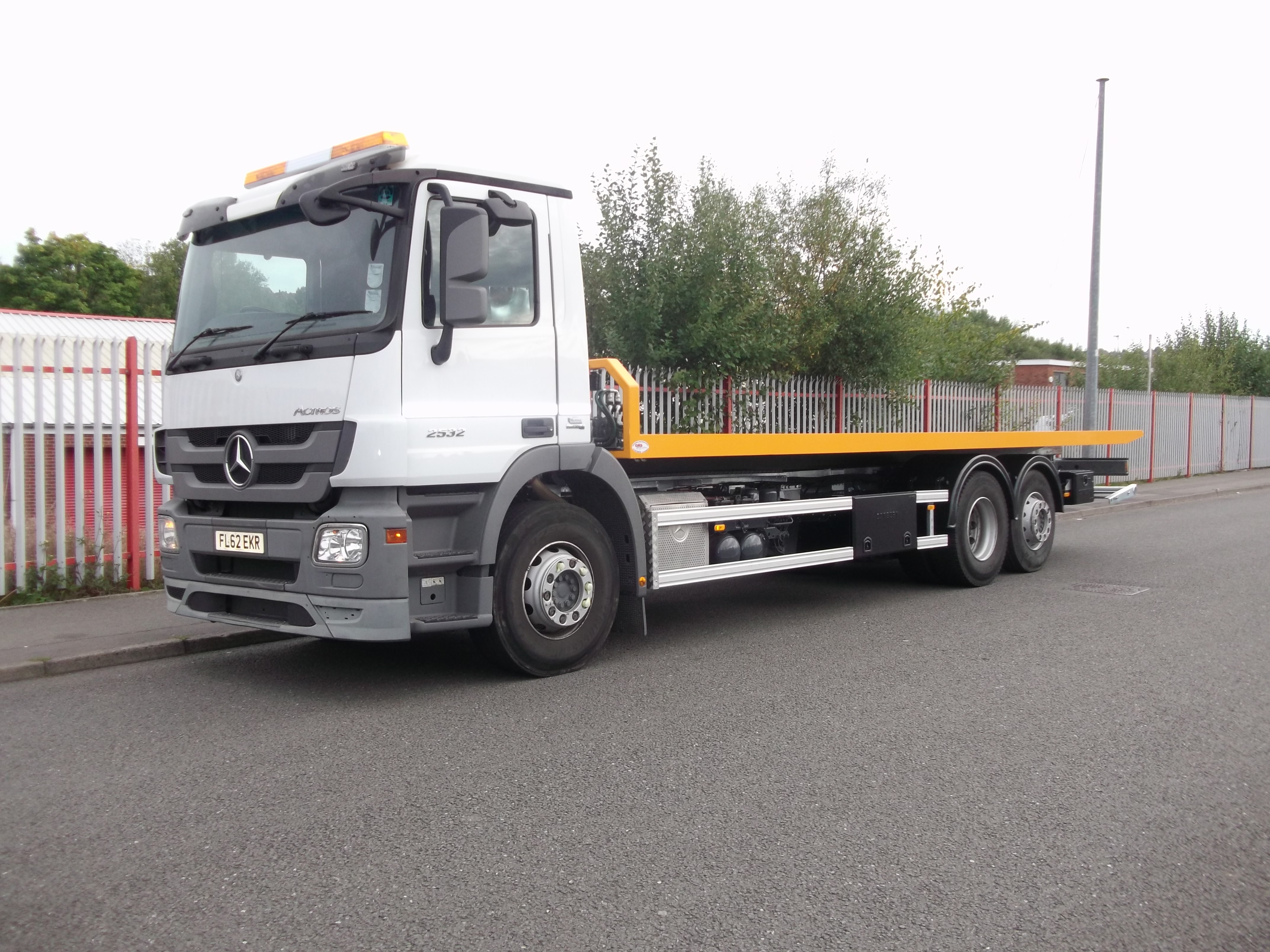

ORS 15/20 Slidebed

The ORS 15/20 is the largest in our product range

Designed for 24ton to 32ton chassis & is favoured by Slavage & Construction Industry

Built to cope with the larger accident damage casuaities & plant machinery

STANDARD BUILD

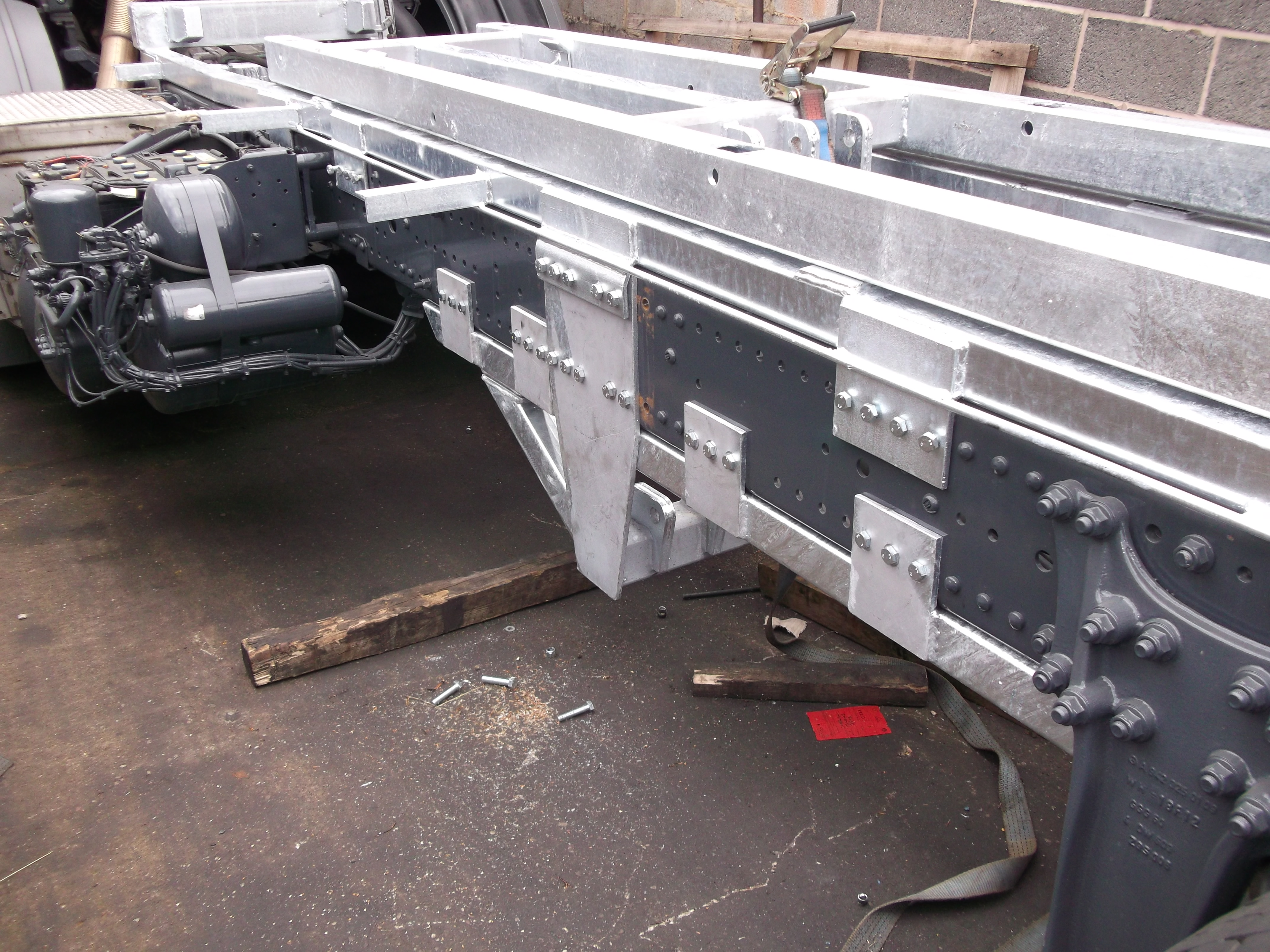

Heavy duty chassis sub frame

Heavy duty tilt frame with built in platform rollers, high capacity slide cylinder of (20ton Design)

Chassis mounted lift cylinder carriage with under chassis support frame & high capacity lift cylinders

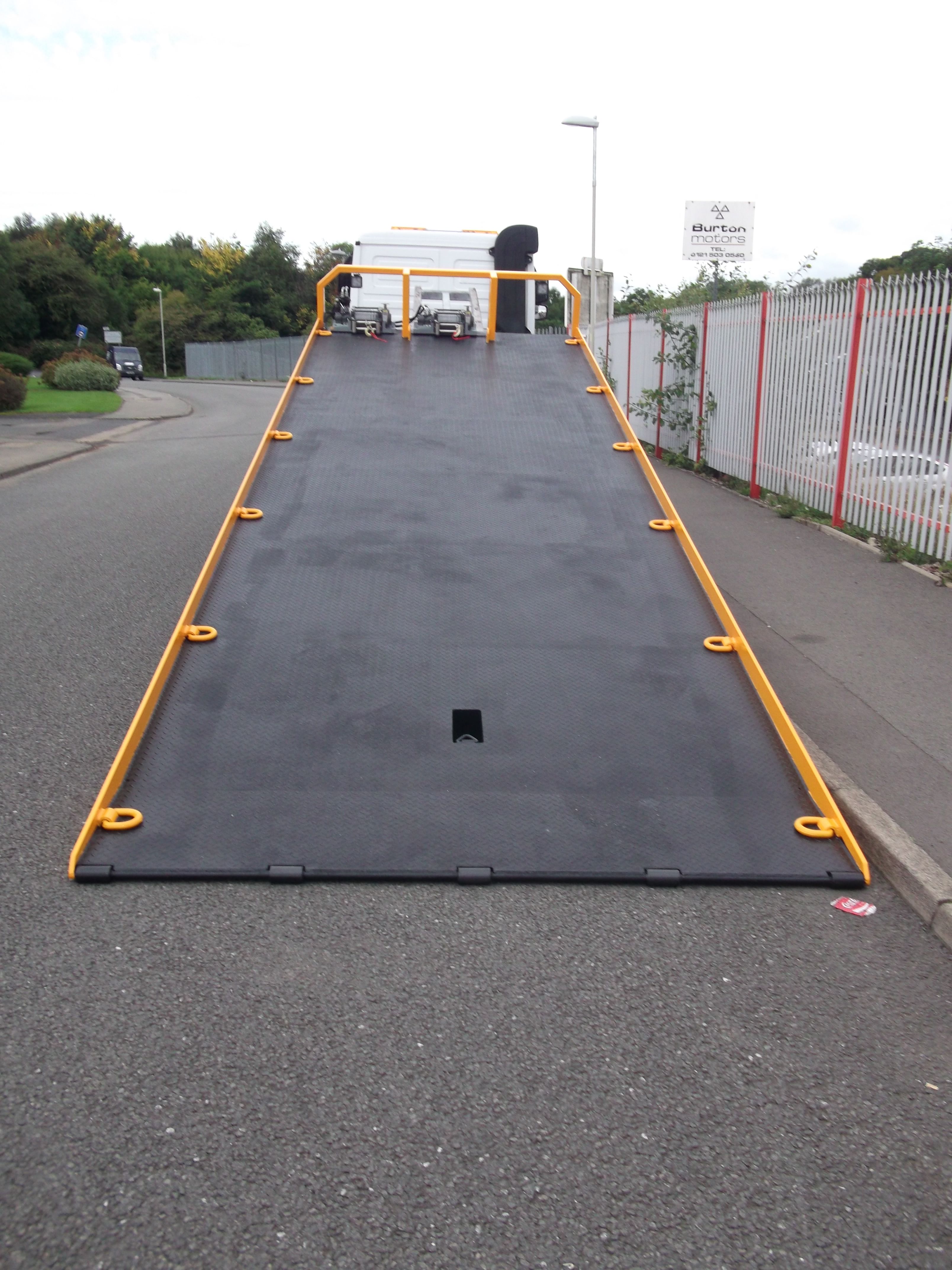

Heavy duty platform to suit chassis , uprated flat steel side raves, full bed end rollers & LED side markers lights

City mover head broad with red LED outline marker lights & 2x LED work lights

8x heavy duty tie-down lashing rings

18,000lb hydraulic winch on radio remote

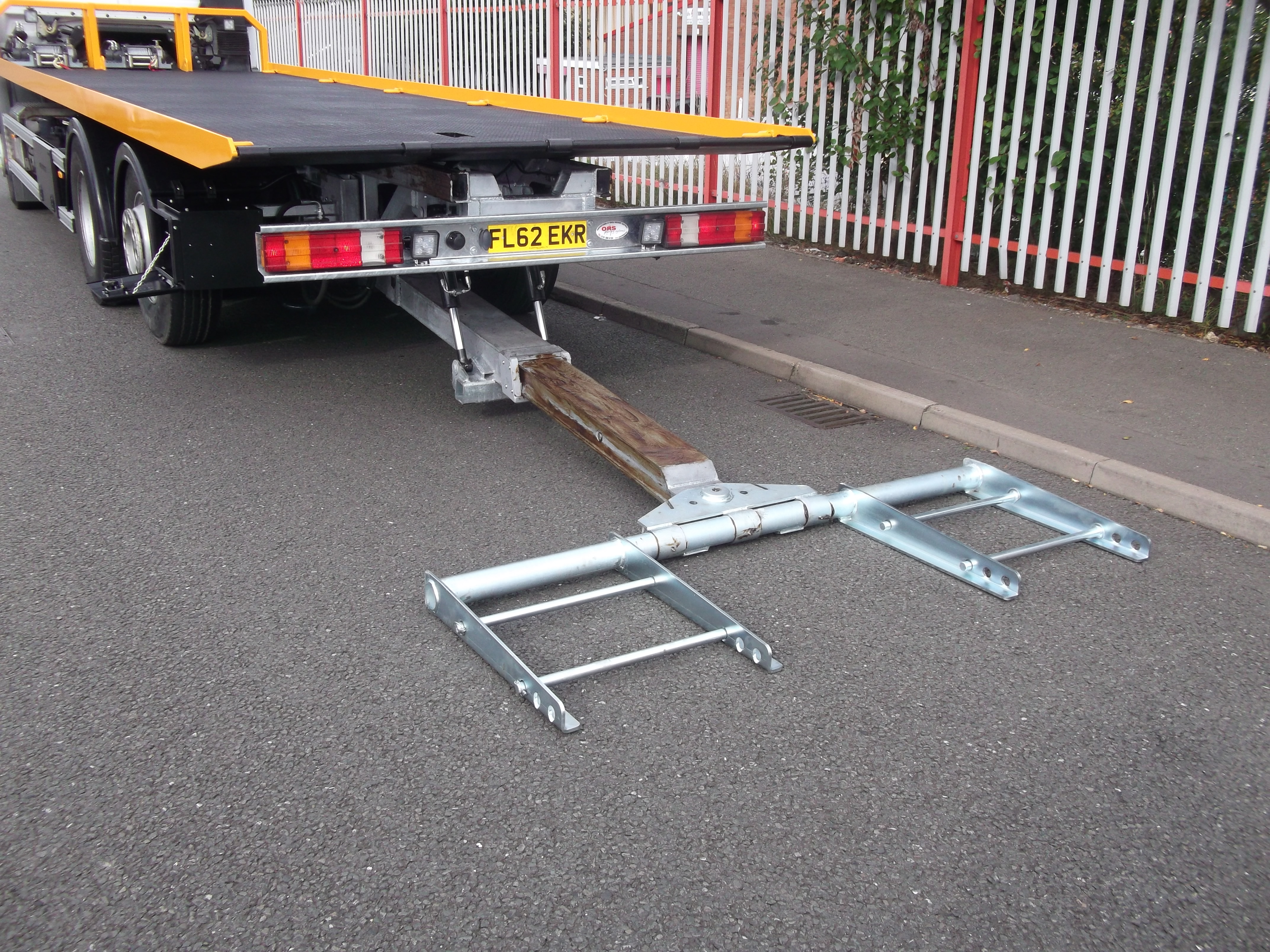

ORS 3 rear vehicle lift (3ton Design) with extra wide wheel grids, reducer bars &1x loading light to rear light panel

LED Beacon to cab roof

1x Plastic side locker

1x Small plastic control station locker

4x Plastic mud wings

P.T.O & Pump ( manual gearbox)

FINISH

Galvanised Chassis sub frame, tilt frame, lift cylinder carriage & rear vehicle lift

Platform to be shot blasted, hard coat primer , black Mio-guard to floor & under side

Side raves & Head broad in 1 solid colour to match cab

OPTIONAL EXTRAS

Flyer bridge with LED beacon , 6x red LED outline marker lights & 2x LED work lights

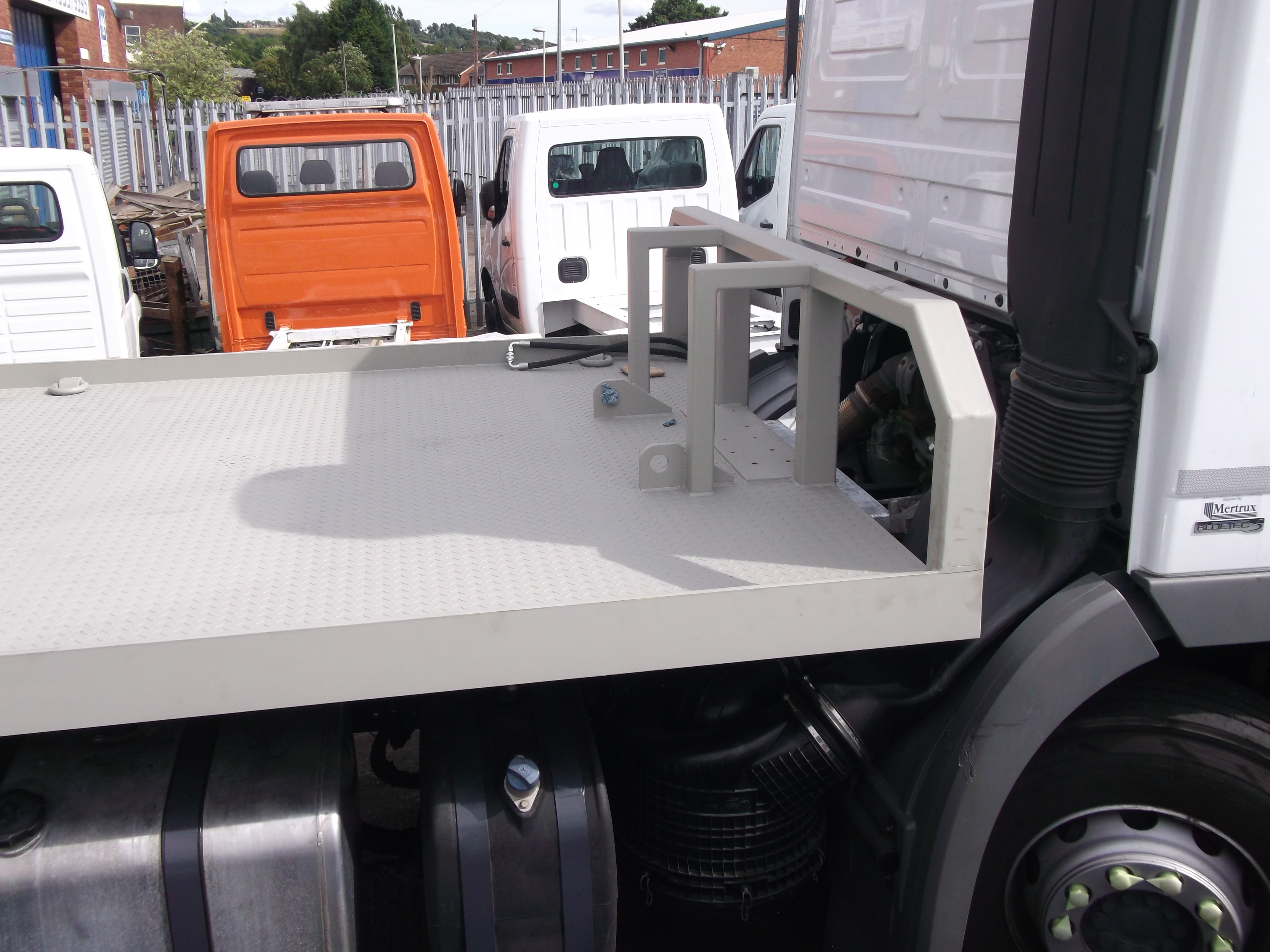

ORS 3 lie-flat top deck (3ton design)

ORS 3.5 rear vehicle lift with detachable wheel grids, fork pedestals & 3 sets of forks

Manual stabilizer legs

Hydraulic stabilizer legs

Heavy duty winch back box to rear of bed

Heavy duty double up winching ring to front of bed

Chassis sub frame extension to accommodate crane mounting

Stainless steel lockers

Auto slide & tilt system on radio remote

Hot clutch P.T.O ( automatic gearbox only)

Side protection rails

I.V.A Paperwork for new vehicles
